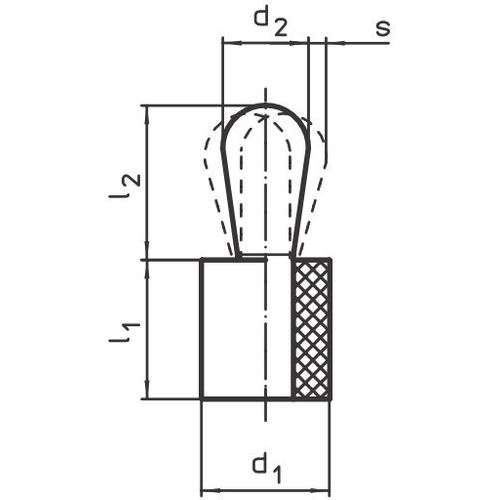

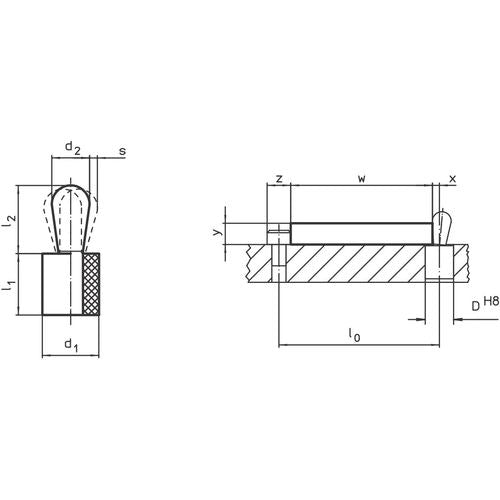

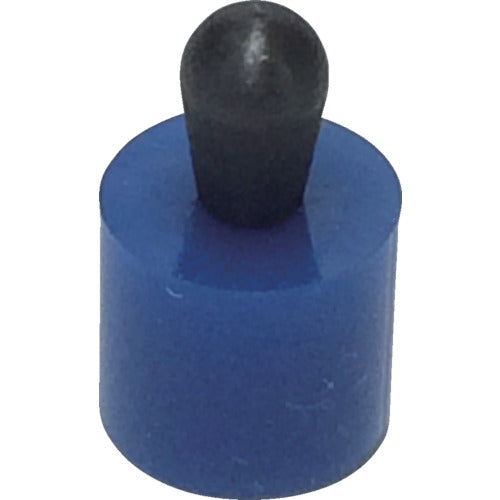

Catalogue number: 22150.0207 Features: ●Used for simple fixing of thin, lightweight parts. ●Presses the workpiece laterally to position it. ●Easy to install and does not take up much space. ●Used for positioning and pressing. Applications: ●Simple fixing of lightweight items such as printed circuit boards and plastic exteriors. ●For lateral positioning of lightweight workpieces. Specifications: ●d2 (mm): 6 ●l2 (mm): 10.3 ●d1 (mm): 10 ●l1 (mm): 9 ●Spring force F (N, max): 20 ●Stroke s/x (mm): 1.0 ●Mounting hole D (mm): 9.9 ●Press-in installation ●Includes weak pressure plastic spring Material/Finish: ●Body: Plastic ●Pin: Steel, carburized, hardened, blackened ●Spring: Plastic
