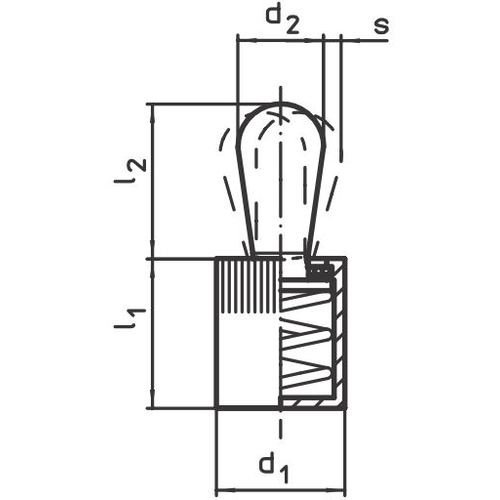

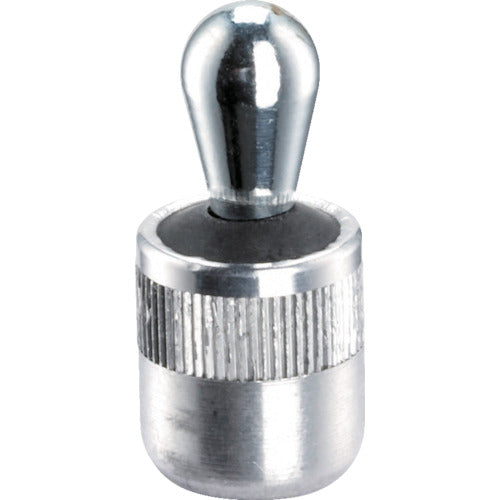

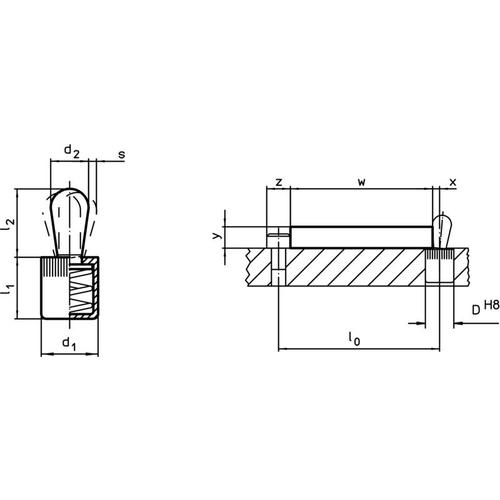

Catalogue number: 22150.0130 Features: ● Used for simple fixing of thin, lightweight parts. ● Presses the workpiece laterally to position it. Applications: ● Simple fixing of lightweight items such as printed circuit boards and plastic exteriors. For lateral positioning of lightweight workpieces. Specifications: ● d2 (mm): 8 ● l2 (mm): 13 ● d1 (mm): 12 ● l1 (mm): 14 ● Spring force F (N, max): 50 ● Stroke s/x (mm): 2.6 ● Mounting hole D (mm): 12 ● With steel pin ● With seal ● Press-fit mounting ● Easy to install and does not take up space Materials/Finish: ● Pin: Steel, carburized, zinc-plated ● Housing: Aluminum
