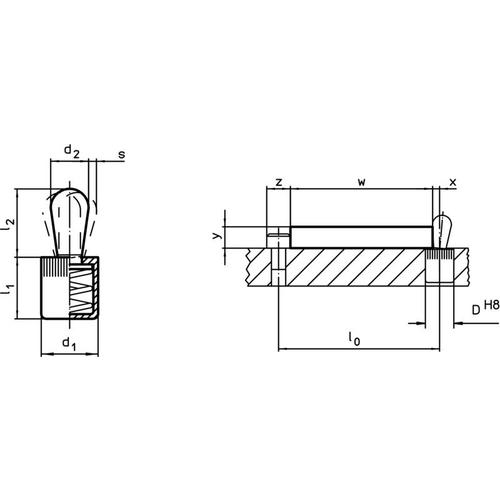

Catalogue number: 22150.0031 Features: ●Used for simple fixing of thin lightweight parts. ●Presses the workpiece laterally to position it. Applications: ●Simple fixing of lightweight items such as printed circuit boards and plastic exteriors. For lateral positioning of lightweight workpieces. Specifications: ●d2 (mm): 8 ●l2 (mm): 13.9 ●d1 (mm): 12 ●l1 (mm): 13 ●Spring force F (N, max): 100 ●Stroke s/x (mm): 2.6 ●Mounting hole D (mm): 12 ●With steel pin ●No seal ●Press-in mounting ●Easy to install and does not take up space Materials/Finish: ●Pin: Steel, carburized, zinc-plated ●Housing: Aluminum
