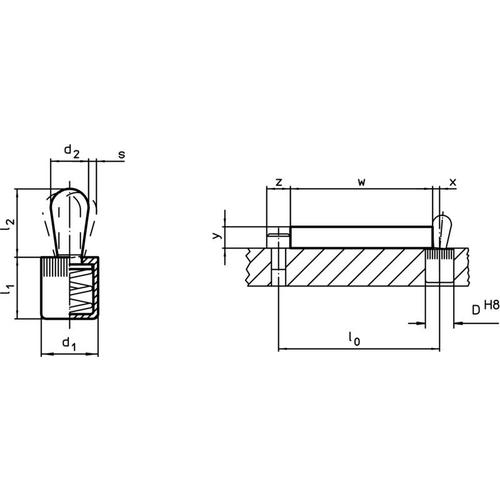

Catalogue number: 22150.0032 Features: ●Used for simple fixing of thin lightweight parts. ●Presses the workpiece laterally to position it. ●Easy to install and does not take up space. Applications: ●Simple fixing of lightweight items such as printed circuit boards and plastic exteriors. For lateral positioning of lightweight workpieces. Specifications: ●d2 (mm): 8 ●l2 (mm): 13.9 ●d1 (mm): 12 ●l1 (mm): 13.5 ●Spring force F (N, max): 150 ●Stroke s/x (mm): 2.6 ●Mounting hole D (mm): 12 ●No dust seal ●Press-fit installation ●With reinforced steel spring Material/Finish: ●Pin: Steel, carburized and hardened, zinc-plated ●Body: Aluminum
