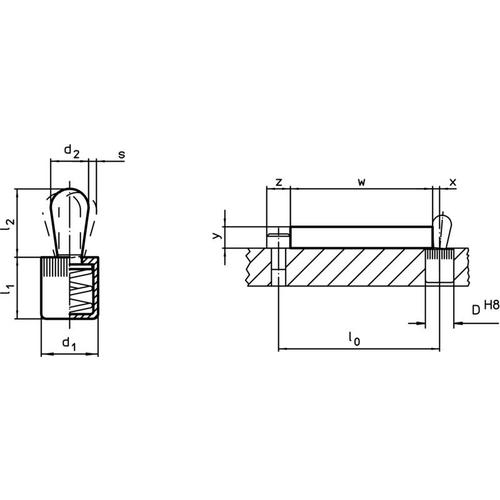

Catalogue number: 22150.0042 Features: ● Used for simple fixing of thin lightweight parts. ● Presses the workpiece laterally to position it. ● Easy to install and does not take up space. Applications: ● Simple fixing of lightweight items such as printed circuit boards and plastic exteriors. For lateral positioning of lightweight workpieces. Specifications: ● d2 (mm): 10 ● l2 (mm): 16.7 ● d1 (mm): 16 ● l1 (mm): 18 ● Spring force F (N, max): 200 ● Stroke s/x (mm): 3.2 ● Mounting hole D (mm): 16 ● No dust seal ● Press-fit installation ● With reinforced steel spring Material/Finish: ● Pin: Steel, carburized and hardened, zinc plated ● Body: Aluminum
