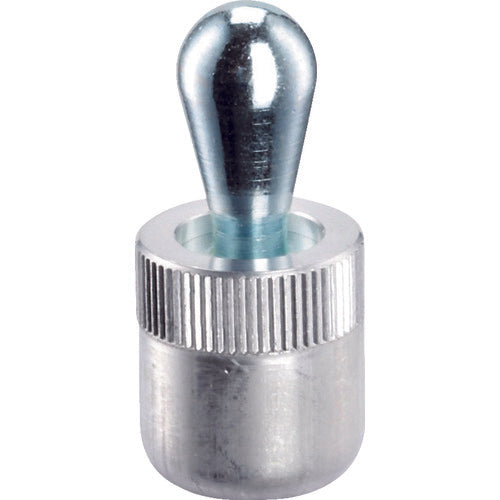

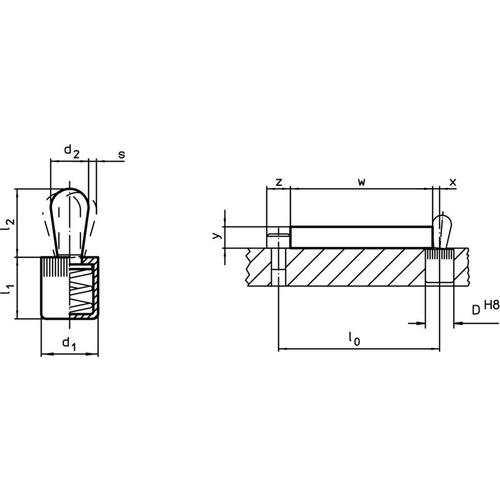

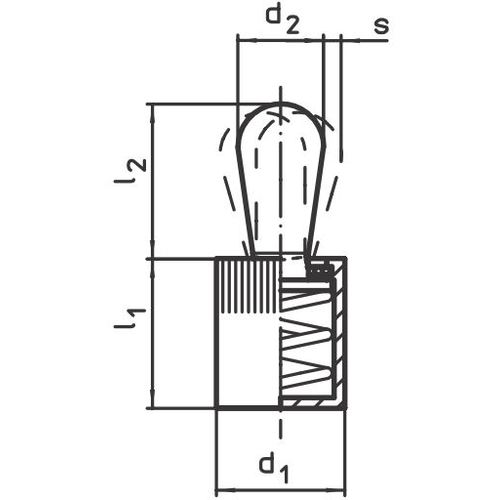

Catalogue number: 22150.0010 Features: ●The lateral spring force of the pin positions and presses the workpiece. ●Presses the workpiece laterally to position it. Applications: ●Easy fixing of lightweight items such as circuit boards and plastic exteriors. For lateral positioning of lightweight workpieces. Specifications: ●d2 (mm): 3 ●l2 (mm): 4 ●d1 (mm): 6 ●l1 (mm): 7 ●Spring force F (N, max): 10 ●Stroke s/x (mm): 1.0 ●Mounting hole D (mm, tolerance H8): 6 ●With steel pin ●Press-fit mounting Material/Finish: ●Housing: Aluminum ●1
