HALDER Ball Lock Pin Self-locking with Mushroom Grip Pin diameter 6 Maximum workpiece thickness 45 22340.0229 1 piece

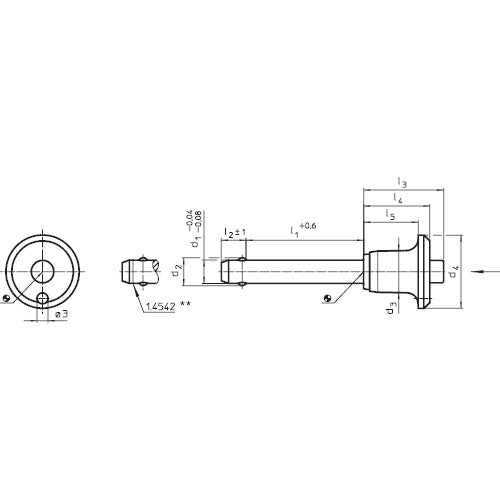

Catalogue number: 22340.0229 Features: ● Helps to quickly fix, lock, replace and adjust the position of parts and processed products. ● Ideal for areas where attachment and detachment are repeated frequently. ● Corrosion resistant. ● Compact and easy to handle mushroom-shaped grip (black). ● Comes with a mounting hole for a holding cable (EH22412. Sold separately). ● The ball is unlocked by pressing the button and locked when released. Applications: ● Locking adjustment mechanisms, fastening removable parts, fixing movable parts, and as a substitute for screws and fasteners. ● Helps to quickly fix, lock, replace and position parts and processed products, and is ideal for areas where attachment and detachment are repeated frequently. Specifications: ●Shear strength (kN): 21 ●d1: 6 ●d2: 7.0 ●d3: 11.3 ●l1: 45 ●l2: 7.0 ●l3: 20.7 ●l4: 17.6 ●l5: 14.6 ●Mounting hole H11 (mm): 6 ●d4: 20 ●Self-locking function ●Hole tolerance is H11 ●Operating temperature range: -30℃ to 150℃ ●With mushroom-shaped grip ●With lock release function Material/Finish: ●Pin part: Stainless steel 1.4305 (equivalent to SUS303) ●Grip part: Aluminum (equivalent to RAL9005) ●Spring: Stainless steel ●Push button: Stainless steel
