HALDER Ball Lock Pin Self-Locking Straight Type Pin Diameter 8 Maximum Workpiece Thickness 30 22370.0036 1 pc

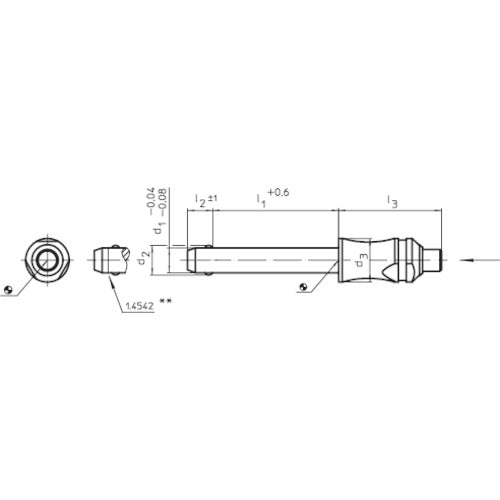

Catalogue number: 22370.0036 Features: * Quickly fixes, locks, replaces and positions parts and processed products. * Ideal for areas where attachment and detachment are repeated frequently. * Pin material is equivalent to SUS303. * Corrosion resistant. * Compact shape with a recess that is easy to hook your finger into. * Can be attached to a holding cable (EH22400.0970/0974 sold separately). Please inquire about other attachment methods. Applications: * Locks adjustment mechanisms, fastens attachment and detachment parts, fixes movable parts, and can be used in place of screws or fasteners. Specifications: ●Shear strength (kN): 38 ●d1: 8 ●d2: 9.5 ●d3: 14 ●l1: 30 ●l2: 8.2 ●l3: 33.1 ●Mounting hole H11: 8 ●Self-locking function ●With lock release function ●Straight type ●Hole tolerance is H11 ●Maximum operating temperature: 250°C Material/Finish: ●Pin part: Stainless steel 1.4305 (equivalent to SUS303) ●Spring: Stainless steel
