HALDER Ball Lock Pin Self-Locking With Length Adjustment Mechanism Pin Diameter 10 Workpiece Thickness 25-35 22370.0627 1 pc

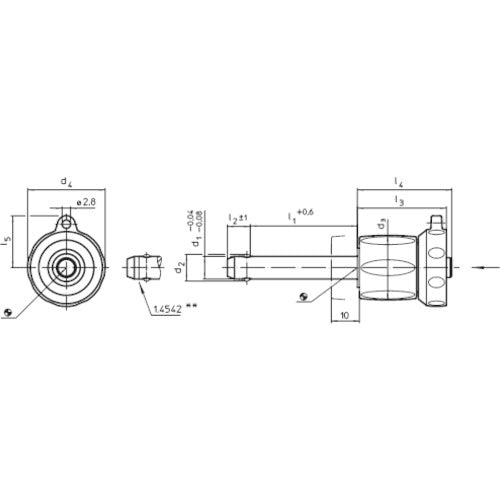

Catalogue number: 22370.0627 Features: * Quickly secures parts and processed products. * Length can be adjusted with the nut. * Clamp length can be adjusted steplessly by turning the nut and counter nut by hand. * Corrosion resistant. * Can be fitted with a holding cable (EH22400. sold separately). Applications: * Locks adjustment mechanisms, fastening detachable parts, fixing movable parts, and can be used in place of screws or fasteners. Specifications: ● Shear strength (kN): 60 ● Clamp length (mm): 25-35 ● d1: 10 ● d2: 12.0 ● d3: 23.0 ● l1: 250-35 ● l2: 9.6 ● l3: 31.2 ● l4: 33.1 ● l5: 18.0 ● Mounting hole H11: 10 ● d4: 27.6 ● Self-locking function ● With lock release function ● Mounting hole tolerance: H11 ● Operating temperature range: -30 to 80°C ● With length adjustment mechanism Material/Finish: ● Pin: Stainless steel 1.4305 (equivalent to SUS303) ● Spring: Stainless steel ● Adjustment nut: Thermoplastic resin, silver ● Lock nut: Thermoplastic resin, black
