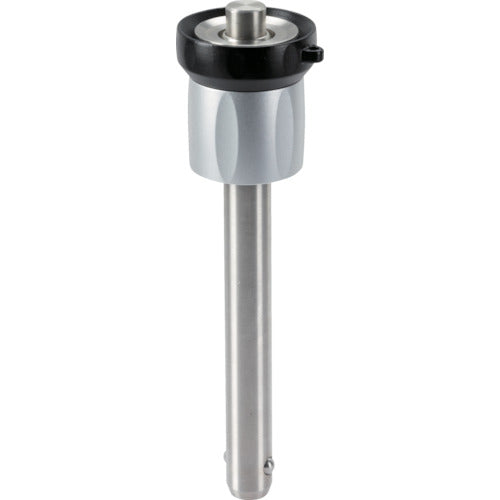

HALDER Ball Lock Pin Self-Locking With Length Adjustment Mechanism Pin Diameter 12 Workpiece Thickness 40-50 22370.0640 1 pc

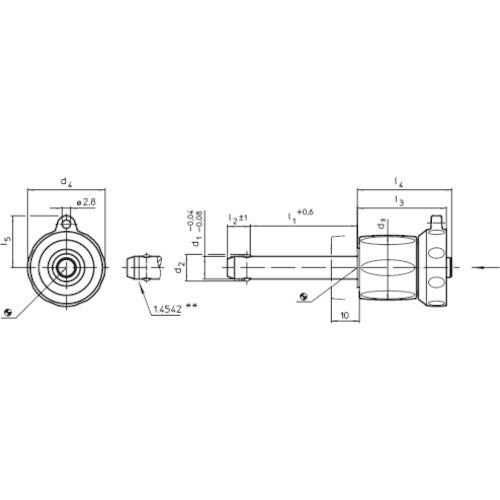

Catalogue number: 22370.0640 Features: * Quickly secures parts and processed products. * Length can be adjusted with the nut. * Clamp length can be adjusted steplessly by turning the nut and counter nut by hand. * Corrosion resistant. * Retaining cable (EH22400. sold separately) can be attached. Applications: * Locking adjustment mechanisms, fastening detachable parts, fixing movable parts, and as a substitute for screws and fasteners. Specifications: ●Shear strength (kN): 87 ●Clamp length (mm): 40-50 ●d1: 12 ●d2: 14.5 ●d3: 29.0 ●l1: 400-50 ●l2: 10.6 ●l3: 36.7 ●l4: 39.5 ●l5: 21.8 ●Mounting hole H11: 12 ●d4: 34.6 ●Self-locking function ●With lock release function ●Mounting hole tolerance: H11 ●Operating temperature range: -30 to 80°C ●With length adjustment mechanism Material/Finish: ●Pin: Stainless steel 1.4305 (equivalent to SUS303) ●Spring: Stainless steel ●Adjustment nut: Thermoplastic resin, silver ●Lock nut: Thermoplastic resin, black
