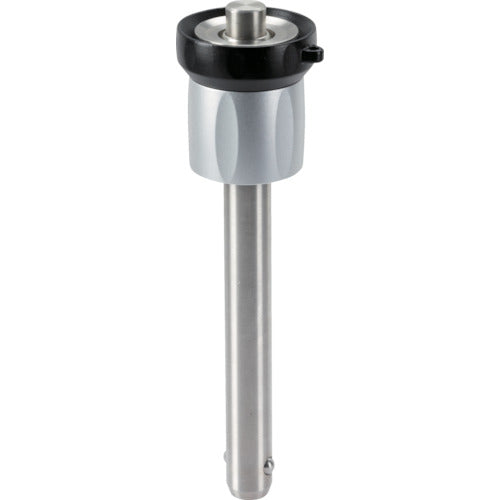

HALDER Ball Lock Pin Self-locking With length adjustment mechanism Pin diameter 16 Work thickness 30-40 22370.0658 1 pc

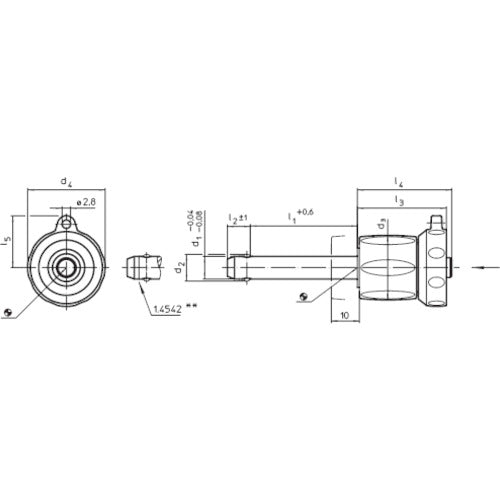

Catalogue number: 22370.0658 Features: * Quickly secures parts and processed products. * Length can be adjusted with the nut. * Clamp length can be adjusted steplessly by turning the nut and counter nut by hand. * Corrosion resistant. * Can be fitted with a holding cable (EH22400. sold separately). Applications: * Locks adjustment mechanisms, fastens removable parts, fixes movable parts, and can be used in place of screws or fasteners. Specifications: ●Shear strength (kN): 155 ●Clamp length (mm): 30-40 ●d1: 16 ●d2: 19.0 ●d3: 29.0 ●l1: 300-40 ●l2: 14.0 ●l3: 36.7 ●l4: 39.5 ●l5: 21.8 ●Mounting hole H11: 16 ●d4: 34.6 ●Self-locking function ●With lock release function ●Mounting hole tolerance: H11 ●Operating temperature range: -30 to 80°C ●With length adjustment mechanism Material/Finish: ●Pin: Stainless steel 1.4305 (equivalent to SUS303) ●Spring: Stainless steel ●Adjustment nut: Thermoplastic resin, silver ●Lock nut: Thermoplastic resin, black
