HALDER Ball Lock Pin Self-Locking With Length Adjustment Mechanism Pin Diameter 6 Workpiece Thickness 25-35 22370.0607 1 pc

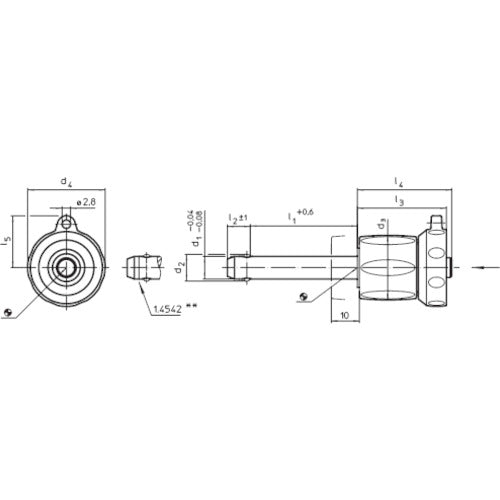

Catalogue number: 22370.0607 Features: * Quickly secures parts and processed products. * Length can be adjusted with the nut. * Clamp length can be adjusted steplessly by turning the nut and counter nut by hand. * Corrosion resistant. * Retaining cable (EH22400. sold separately) can be attached. Applications: * Locking adjustment mechanisms, fastening detachable parts, fixing movable parts, and as a substitute for screws and fasteners. Specifications: ●Shear strength (kN): 21 ●Clamp length (mm): 25-35 ●d1: 6 ●d2: 7.0 ●d3: 17.6 ●l1: 250-35 ●l2: 7.0 ●l3: 25.7 ●l4: 26.2 ●l5: 15.9 ●Mounting hole H11: 6 ●d4: 23.6 ●Self-locking function ●With lock release function ●Mounting hole tolerance: H11 ●Operating temperature range: -30 to 80°C ●With length adjustment mechanism Material/Finish: ●Pin: Stainless steel 1.4305 (equivalent to SUS303) ●Spring: Stainless steel ●Adjustment nut: Thermoplastic resin, silver ●Lock nut: Thermoplastic resin, black
