HALDER Ball Lock Pin Self Locking with T-Grip Pin Diameter 10 Maximum Workpiece Thickness 110 22340.0057 1 piece

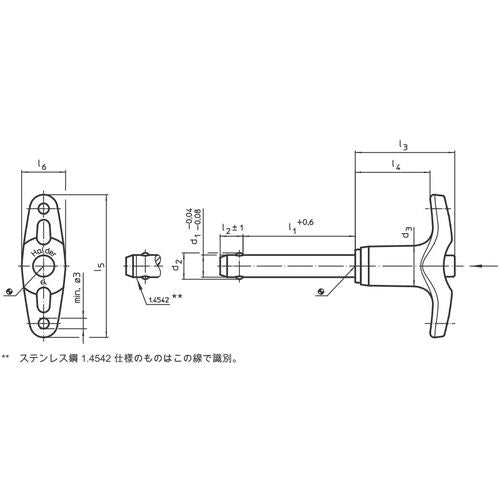

Catalogue number: 22340.0057 Features: * Quickly fix, lock, replace and position parts and processed products. * Ideal for areas where attachment and detachment are repeated frequently. * Corrosion resistant. * Grip with easy-to-handle shape. * Comes with a mounting hole for a holding cable (EH22400. sold separately). * The ball is unlocked by pressing the button and locked when released. Applications: * Locking adjustment mechanisms, fastening removable parts, fixing movable parts, and as a substitute for screws and fasteners. * Quickly fix, lock, replace and position parts and processed products, ideal for areas where attachment and detachment are repeated frequently. Specifications: ●Shear strength (kN): 60 ●d1: 10 ●d2: 12.0 ●d3: 14.7 ●l1: 110 ●l2: 9.6 ●l3: 35.8 ●l4: 26.9 ●l5: 51.5 ●l6: 15.8 ●Mounting hole H11: 10 ●Self-locking function ●Hole tolerance is H11 ●Operating temperature range: -30 to 150°C ●With T-shaped grip Material/Finish: ●Pin: Stainless steel 1.4305 (equivalent to SUS303) ●Grip: Aluminum, black (equivalent to RAL9005) ●Spring: Stainless steel ●Push button: Stainless steel, black ●Grip: Aluminum (equivalent to RAL9005) ●Spring: Stainless steel ●Push button: Stainless steel
