HALDER Lifting pin self-locking heat-treated steel 10L 22350.0601 1 piece

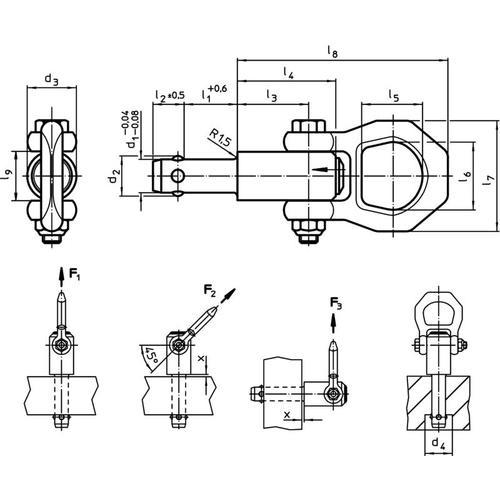

Catalogue number: 22350.0601 Features: * A sturdy lifting device that is quick and easy to use. * A lifting tool that can be easily attached and detached with the touch of a button. * No tapped holes are required in the object to be lifted; a hole of H11 (dimensional tolerance) is sufficient. * Excellent corrosion resistance. * The lifting pin (lifting device) can be easily attached and detached by simply pressing a button. * Reduces eye bolt work by approximately 85%. Applications: * For transporting and assembling products, parts, jigs, and molds. Specifications: ●Dimensions (mm) d1: 8 ●Dimensions (mm) d3: 21.5 ●Dimensions (mm) l1: 10 ●Dimensions (mm) l8: 87.5 ●Dimensions (mm) Mounting hole H11: 8 ●Dimensions (mm) l7: 49 ●Load capacity F1 (kN): 1.5 ●With unlocking function ●Heat resistance: up to 250°C, can be combined with locating bushings (sold separately) ●Can be combined with locating bushings (sold separately): 22350.0900 to .0936 (for d1 = 8, 10, 12, 16) ●CE mark acquired Material/Finish: ●Pin: Heat-treated steel (heat-treated, manganese phosphate treatment) ●Shackle: Heat-treated steel (heat-treated, manganese phosphate treatment) ●Spring: Stainless steel ●Push button: Aluminum (red oxide film treatment) Caution: ●Please read the instruction manual before use. If used improperly, the workpiece may fall. ●Use only in steel holes. ●Please note that if the dimensions of the mounting hole of the lifting pin are not appropriate or if the lifting pin is used improperly, the workpiece may fall, leading to a serious accident. ●The working load is the allowable vertical load. ●Use only in steel holes.
