HALDER Lifting Pin Self-Locking Heat Treated Steel 75L 22350.0645 1 piece

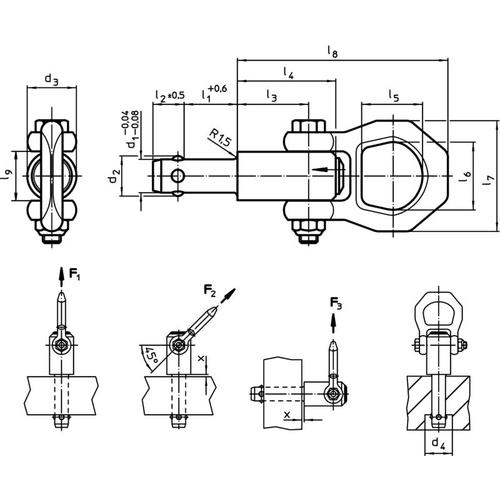

Catalogue number: 22350.0645 Features: ● A sturdy lifting device that is quick and easy to use. ● The movable shackle has a safety bar to prevent the button from being pressed unintentionally. ● Tapped holes are not required in the object to be lifted; a hole of H11 (dimension tolerance) is sufficient. ● Corrosion resistant. Applications: ● For transporting and assembling products, parts, jigs, and molds. Specifications: ● Dimensions (mm) d1: 16 ● Dimensions (mm) d3: 25 ● Dimensions (mm) l1: 75 ● Dimensions (mm) l8: 92.8 ● Dimensions (mm) Mounting hole H11: 16 ● Dimensions (mm) l7: 49 ● Load capacity F1 (kN): 4.8 ● The ball at the tip of the pin fixes the end face of the hole in the target workpiece. ●Heat resistance: up to 250°C, can be combined with locating bushings (sold separately) ●CE mark acquired Material/Finish: ●Pin: Heat-treated steel (heat-treated, manganese phosphate treatment) ●Shackle: Heat-treated steel (heat-treated, manganese phosphate treatment) ●Spring: Stainless steel ●Push button: Aluminum (red oxide coating) Caution: ●Be sure to read the instruction manual before use. Improper use may cause the workpiece to fall. ●Use only in steel holes. ●Please note that if the dimensions of the mounting holes of the lifting pins are not appropriate or the method of use is not correct, the workpiece may fall and lead to a serious accident. ●Mounting holes must be properly machined. Be sure to read the instruction manual before use. Improper use may cause the workpiece to fall.
