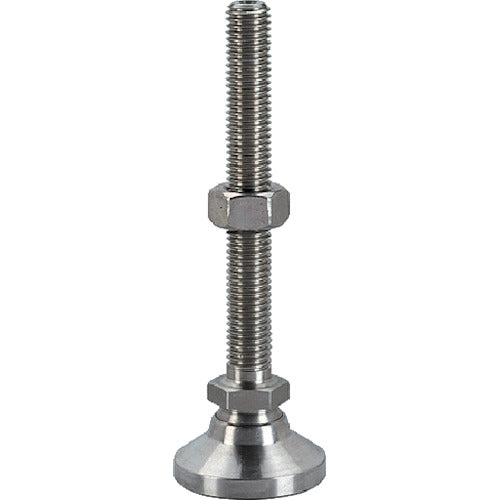

HALDER Leveling Pad Pad with male thread Ball part SUS Load capacity 16kN Nominal size M10 Length 150 22590.0642 1 piece

Catalogue number: 22590.0642 Features: ● Can be used as the legs of equipment. ● Absorbs tilts up to 15°. ● Leveling pad with ball elements and bolts. Applications: ● As equipment legs or thrust pads. ● Specifications: ● Thread size: M10 ● Thread length (mm): 145.5 ● Allowable load (kgf): 1600 ● Total height (mm): 172 ● Base diameter (mm): 32 ● Swing angle (°): 15 ● Threaded part height h1 (mm): 150 ● Pad outer diameter d2 (mm): 32 ● Outer diameter height l1 (mm): approx. 22 ● Load capacity (static load kN): 16 ● Temperature min-max. (℃): 250 ● Nominal size d1 (mm): M10 ● Threaded type ● Maximum operating temperature: 250℃ Material/Finish: ● Stainless steel
