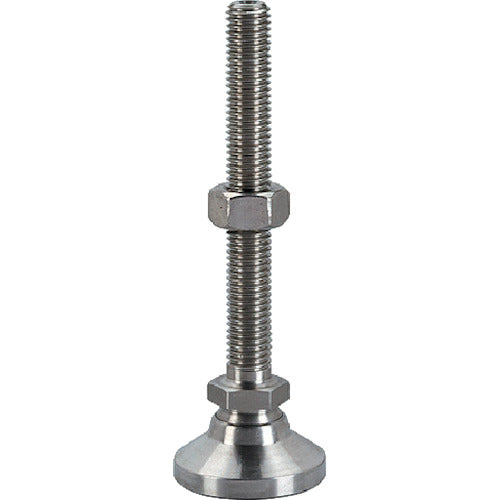

HALDER Leveling Pad Pad with Male Thread Ball Part SUS Load Capacity 28kN Nominal Size M12 Length 100 22590.0652 1 pc

Catalogue number: 22590.0652 Features: ● Can be used as the legs of equipment. ● Absorbs tilts up to 15°. ● Leveling pad with ball elements and bolts. Applications: ● As equipment legs or thrust pads. ● Specifications: ● Thread size: M12 ● Thread length (mm): 94.5 ● Allowable load (kgf): 2800 ● Overall height (mm): 126 ● Base diameter (mm): 40 ● Swing angle (°): 15 ● Threaded part height h1 (mm): 100 ● Pad outer diameter d2 (mm): 40 ● Outer diameter height l1 (mm): approx. 26 ● Load capacity (static load kN): 28 ● Temperature min-max. (℃): 250 ● Nominal size d1 (mm): M12 ● Threaded type ● Maximum operating temperature: 250℃ Material/Finish: ● Stainless steel
