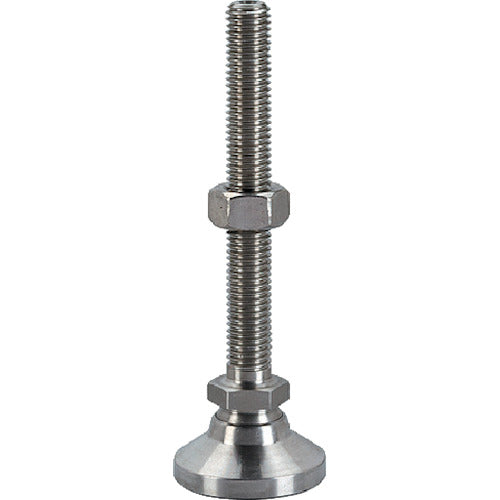

HALDER Leveling Pad Pad with male thread Ball part SUS Load capacity 28kN Nominal size M12 Length 150 22590.0656 1 piece

Catalogue number: 22590.0656 Features: ● Can be used as the legs of equipment. ● Absorbs tilts up to 15°. ● Leveling pad with a ball element and bolt. Applications: ● As equipment legs or thrust pads. ● Specifications: ● Thread size: M12 ● Thread length (mm): 144.5 ● Allowable load (kgf): 2800 ● Total height (mm): 176 ● Base diameter (mm): 40 ● Swing angle (°): 15 ● Threaded part height h1 (mm): 150 ● Pad outer diameter d2 (mm): 40 ● Outer diameter height l1 (mm): approx. 26 ● Load capacity (static load kN): 28 ● Temperature min-max. (℃): 250 ● Nominal size d1 (mm): M12 ● Threaded type ● Maximum operating temperature: 250℃ Material/Finish: ● Stainless steel
