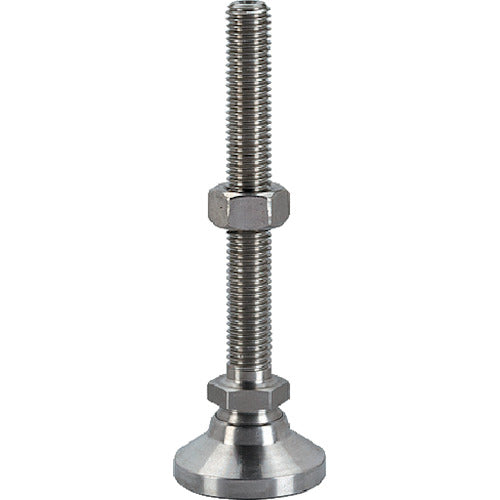

HALDER Leveling Pad Pad with male thread Ball part SUS Load capacity 36kN Nominal size M16 Length 200 22590.0672 1 piece

Catalogue number: 22590.0672 Features: ● Can be used as the legs of equipment. ● Absorbs tilts up to 15°. ● Leveling pad with ball elements and bolts. Applications: ● As equipment legs or thrust pads. ● Specifications: ● Thread dimensions: M16 ● Thread length (mm): 194 ● Allowable load (kgf): 3600 ● Overall height (mm): 232 ● Base diameter (mm): 50 ● Swing angle (°): 15 ● Threaded part height h1 (mm): 200 ● Pad outer diameter d2 (mm): 50 ● Outer diameter height l1 (mm): approx. 32 ● Load capacity (static load kN): 36 ● Temperature min-max. (℃): 250 ● Nominal dimension d1 (mm): M16 ● Threaded type ● Maximum operating temperature: 250℃ Material/Finish: ● Stainless steel
