HALDER Locating bush for ball lock pins with hexagon socket 22400.0912 1 piece

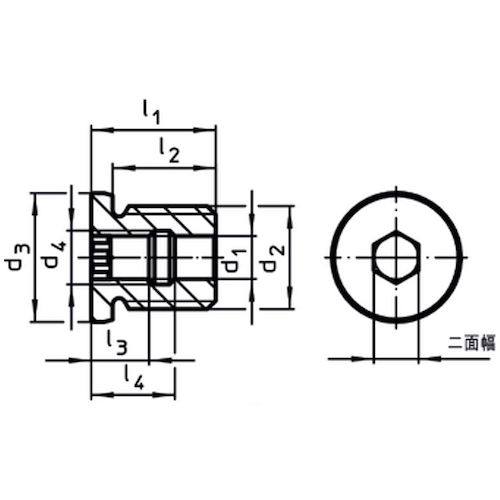

Catalog number: 22400.0912 Features: ●This product is used as a receiver to securely fix ball lock pins and socket pins. ●The h9 tolerance of the collar outer circumference allows for reliable center positioning. ●Easy and reliable attachment to parts. ●Can be attached to parts made of various materials and thin parts. ●Excellent corrosion and abrasion resistance. ●Pins can be inserted from either side. Applications: ●For ball lock pins EH22340/22350/22370/22380 and socket pins EH22400. Specifications: ●d1: 12 ●d2: M24 ●d3: 30 ●d4: 15.0 ●l1: 29 ●l2: 24 ●l3: 14.0 ●l4: 20.0 ●Face width: 12 Material/Finish: ●Stainless steel 1.4305 (equivalent to SUS303)
