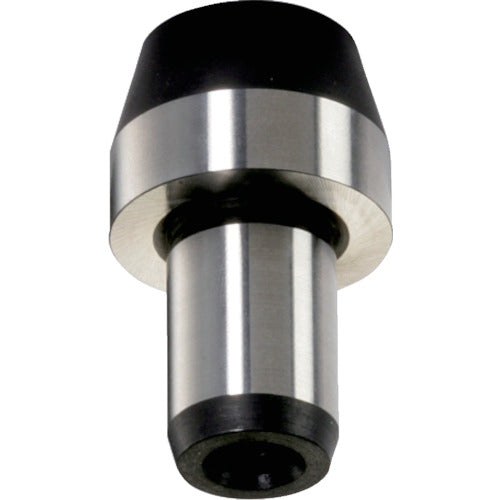

HALDER Locating Pin, Cylindrical, with Through Hole for Fixing, Outer Diameter 12 x Base Height 10L, 22630.0226, 1 Piece

Catalogue number: 22630.0226 Features: ● Comes with a through hole for fixing. ● Comes with a screw hole for fixing. (Not included with the 6 mm outer diameter version.) Applications: ● For positioning workpieces (for reference). ● Can also be used as a stopper or leg. Specifications: ● Outer diameter d1 (mm): 12 ● Base height l1 (mm): 10 ● Pin diameter d2 (mm): 6 ● Pin length l2 (mm): 9 ● Screw size d3: M3 ● Cylindrical shape Comes with a through hole for fixing and a screw hole Material/Finish: ● Hardened steel, carburized, blackened, polished
