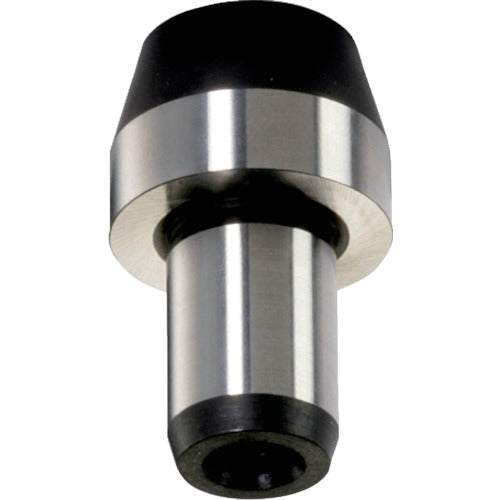

HALDER Locating Pin, Cylindrical, with Through Hole for Fixing, Outer Diameter 6 x Base Height 7L, 22630.0220, 1 Piece

Catalogue number: 22630.0220 Features: ● Used as a reference pin for positioning workpieces. ● Comes with a through hole for fixing. ● Comes with a screw hole for fixing. (Not included with the 6 mm outer diameter version.) Applications: ● For positioning workpieces (for reference). ● Can also be used as a stopper or leg. Specifications: ● Outer diameter d1 (mm): 6 ● Base height l1 (mm): 7 ● Pin diameter d2 (mm): 4 ● Pin length l2 (mm): 6 ● Screw size d3: - ● Cylindrical type with through hole for fixing Material/Finish: ● Hardened steel, carburized, blackened, polished
