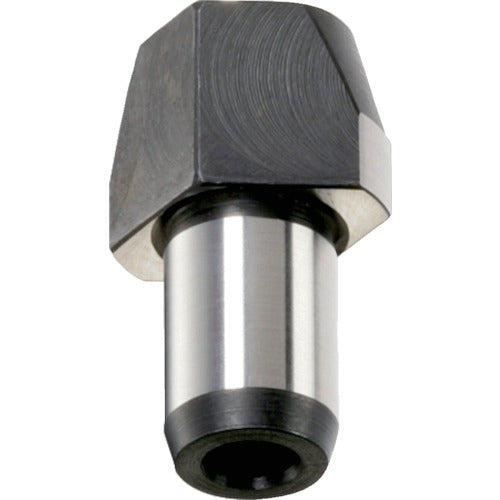

HALDER Positioning pin with through hole for fixing, dia pin, outer diameter 20 x base height 15L, 22630.0250, 1 piece

Catalogue number: 22630.0250 Features: ● Comes with a through hole for fixing. ● Comes with a screw hole for fixing. (Not included with the 6 mm outer diameter version.) Applications: ● For positioning workpieces (one direction only). ● Also for use as a stopper or foot. ● Chamfered diamond pins are used to compensate for hole spacing tolerances and to determine the fixing direction of the workpiece. ● Specifications: ● Outer diameter d1 (mm): 20 ● Base height l1 (mm): 15 ● Pin diameter d2 (mm): 12 ● Pin length l2 (mm): 18 ● Screw size d3: M6 ● Diamond pin with through hole for fixing Material/Finish: ● Hardened steel, carburized, blackened, polished
