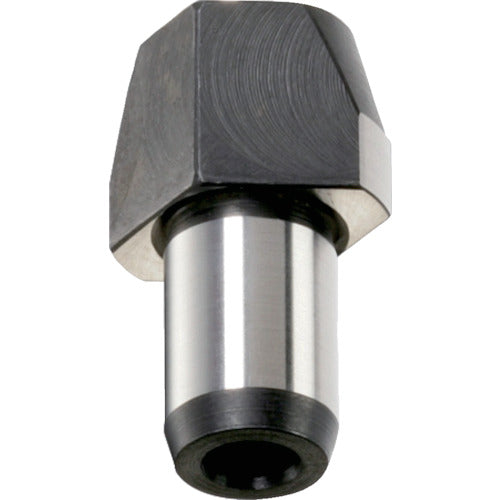

HALDER Positioning pin with through hole for fixing, dia pin, outer diameter 6 x base height 7L, 22630.0240, 1 piece

Catalogue number: 22630.0240 Features: ● Used as a dia pin for positioning workpieces. ● Comes with a through hole for fixing. ● Comes with a screw hole for fixing. (Not included with the 6 mm outer diameter version.) Applications: ● For correcting hole spacing tolerances and determining the fixing direction of a workpiece. Specifications: ● Outer diameter d1 (mm): 6 ● Base height l1 (mm): 7 ● Pin diameter d2 (mm): 4 ● Pin length l2 (mm): 6 ● Screw size d3: - ● Dia pin with through hole for fixing Material/Finish: ● Hardened steel, carburized, blackened, polished
