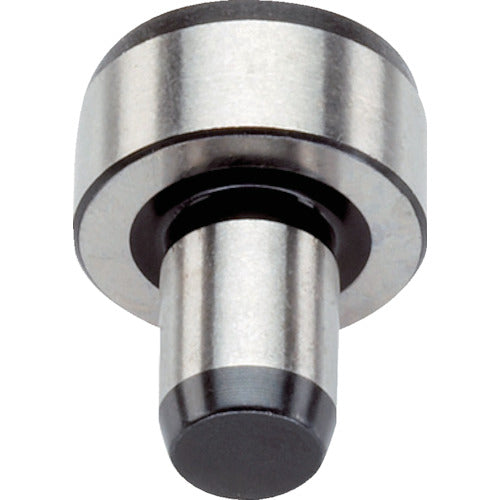

Catalogue number: 22630.0014 Features: ● Chamfering makes it easy to install in holes. ● DIN 6321 A type. Applications: ● For positioning workpieces (for reference). ● Can also be used as a stopper or leg. Specifications: ● Outer diameter d1 (mm): 25 ● Base height l1 (mm): 10 ● Pin diameter d2 (mm): 12 ● Pin length l2 (mm): 18 ● DIN 6321 / Positioning base pin A type Material / Finish: ● Tool steel, hardened, polished
