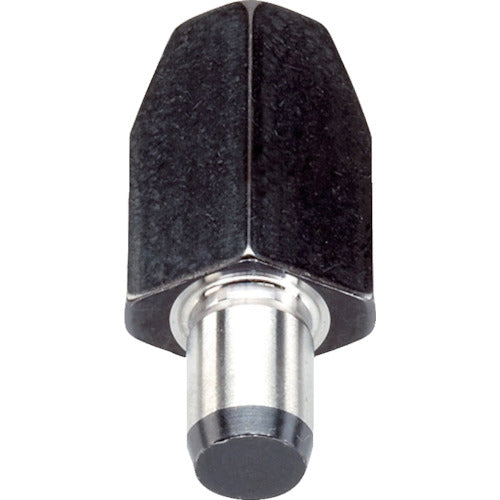

Catalogue number: 22630.0045 Features: ● Chamfering makes it easy to install in holes. ● DIN 6321 C type. Applications: ● For positioning workpieces (one direction only). Specifications: ● Outer diameter d1 (mm): 10 ● Base height l1 (mm): 18 ● Pin diameter d2 (mm): 6 ● Pin length l2 (mm): 9 ● DIN 6321 / Dia pin, DIN 6321 C type Material / Finish: ● Tool steel, hardened, polished
