HALDER Locating Pin C-Type Outer Diameter 6 x Base Height 7L 22630.0040 1 pc

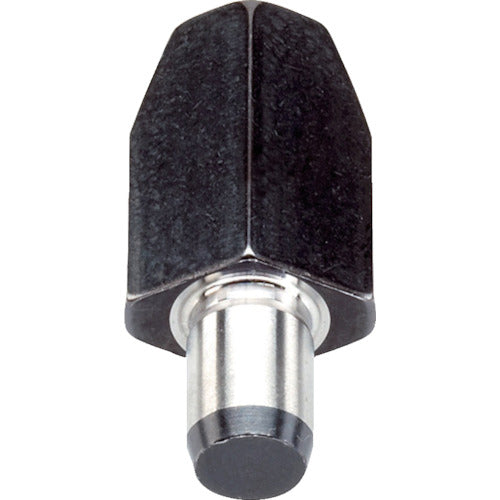

Catalogue number: 22630.0040 Features: ● Used to determine only one direction to absorb the crosstalk of the workpiece hole spacing. ● DIN 6321 C type. Applications: ● Cylindrical pins have a height tolerance of h27, and are used for positioning together with the tolerance hole. ● Also used as stoppers and feet. ● Chamfered diamond pins absorb the tolerance of the hole spacing and determine the fixing direction of the workpiece. Specifications: ● Outer diameter d1 (mm): 6 ● Base height l1 (mm): 7 ● Pin diameter d2 (mm): 4 ● Pin length l2 (mm): 6 ● DIN 6321 / Diamond pin, C type Material / Finish: ● Tool steel, hardened, polished
