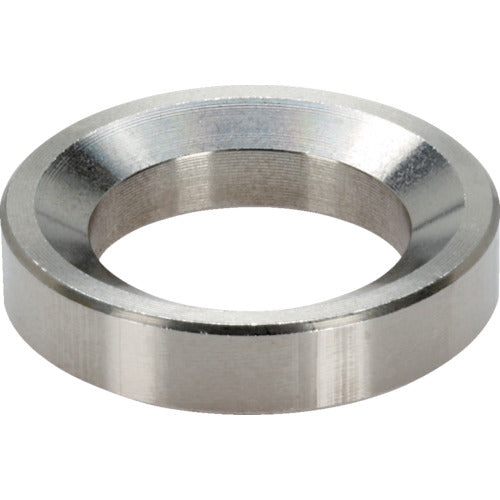

HALDER Conical seat Stainless steel Suitable bolt M12 23050.0412 1 piece

Catalogue number: 23050.0412 Features: ● Used in combination with a spherical washer when the bolt and seat are not perpendicular. ● Corrects the seat angle by up to 3 degrees. Applications: ● For bolt fixing on inclined surfaces such as castings and straps. Specifications: ● Suitable bolt: M12 ● Outside diameter (mm): 24 ● Inside diameter (mm): 14.2 ● Height (mm): 5 ● Load capacity (static load) (max. kN): 24 ● Screw tightening torque (max. Nm): 56 ● Shape D Material/Finish: ● Stainless steel 1.4305 (equivalent to SUS303) Caution: ● Be sure to use shape G for long holes.
