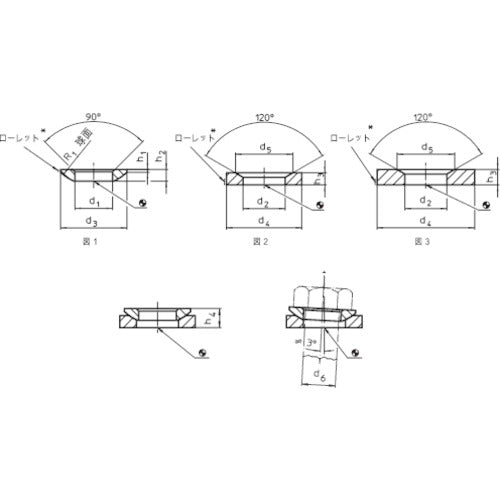

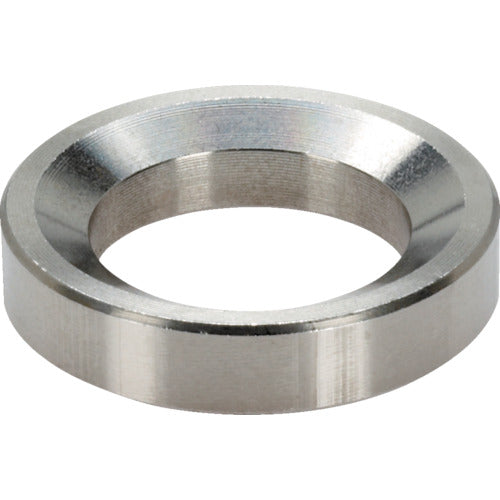

Catalogue number: 23050.0448 Features: ● Used in combination with a spherical washer when the bolt and seat are not perpendicular. ● Corrects the seat angle by up to 3 degrees. Applications: ● For bolt fixing on inclined surfaces such as castings and straps. Specifications: ● Suitable bolt: M48 ● Outside diameter (mm): 92 ● Inside diameter (mm): 56 ● Height (mm): 22 ● Shape D Material/Finish: ● Stainless steel 1.4305 (equivalent to SUS303) Caution: ● Be sure to use shape G for long holes.
