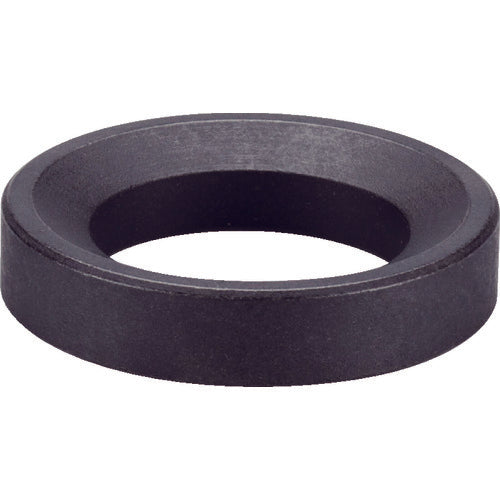

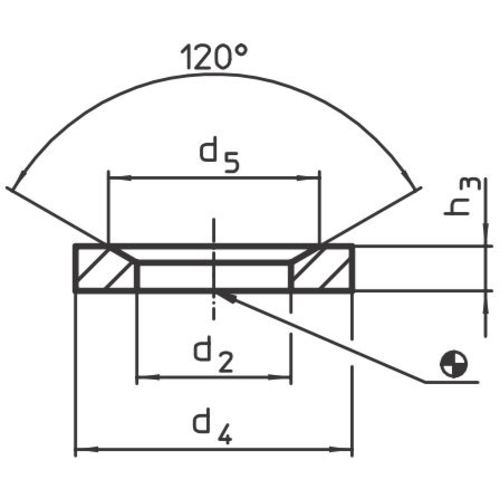

Catalogue number: 23050.0210 Features: ● Used in combination with a spherical washer when the bolt and seat are not perpendicular. ● Corrects the seat angle by approximately 3 degrees. Applications: ● For bolt fixing on inclined surfaces such as castings and straps. Specifications: ● Suitable bolt: M10 ● Outer diameter (mm): 30 ● Inner diameter (mm): 12 ● Height (mm): 5 ● Load capacity (static load) (max. kN): 26 ● Screw tightening torque (max. Nm): 46 ● Shape G Material/Finish: ● Heat-treated steel ● Finish: Phosphate coating Caution: ● Always use shape G for long holes.
