HALDER Conical seat Hardened steel Suitable bolt M16 23050.0216 1 piece

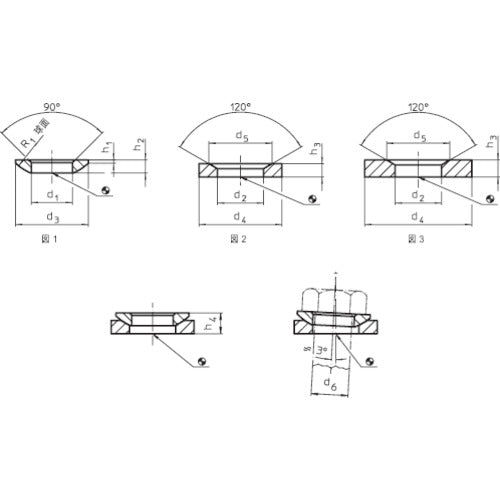

Catalogue number: 23050.0216 Features: ● Used in combination with a spherical washer when the bolt and seat are not perpendicular. ● Corrects the seat angle by up to 3 degrees. Applications: ● For bolt fixing on inclined surfaces such as castings and straps. Specifications: ● Suitable bolt: M16 ● Outer diameter (mm): 44 ● Inner diameter (mm): 19 ● Height (mm): 7 ● Load capacity (static load) (max. kN): 73 ● Screw tightening torque (max. Nm): 206 ● Shape G Material/Finish: ● Heat-treated steel ● Finish: Phosphate coating Caution: ● Always use shape G for long holes.
