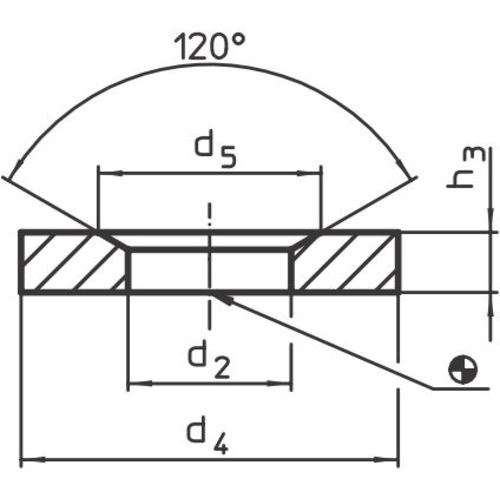

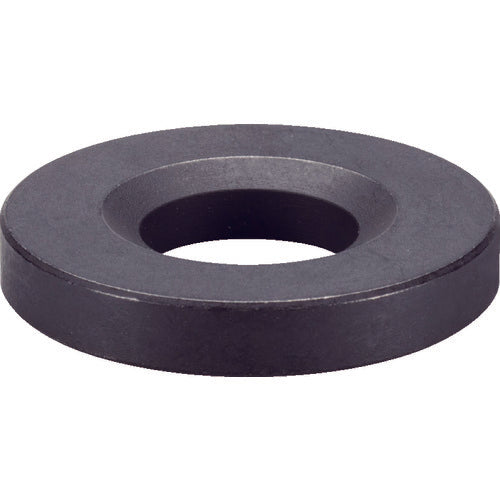

Catalogue number: 23050.0124 Features: ● Used in combination with a spherical washer when the bolt and seat are not perpendicular. ● Corrects the seat angle by up to 3 degrees. Applications: ● For bolt fixing on inclined surfaces such as castings and straps. Specifications: ● Suitable bolt: M24 ● Outer diameter (mm): 44 ● Inner diameter (mm): 28 ● Height (mm): 9.5 ● Load capacity (static load) (max. kN): 168 ● Screw tightening torque (max. Nm): 698 ● Shape D Material/Finish: ● Hardened steel (carburized and hardened) ● Finish: Phosphate coating treatment Caution: ● Be sure to use shape G for long holes.
