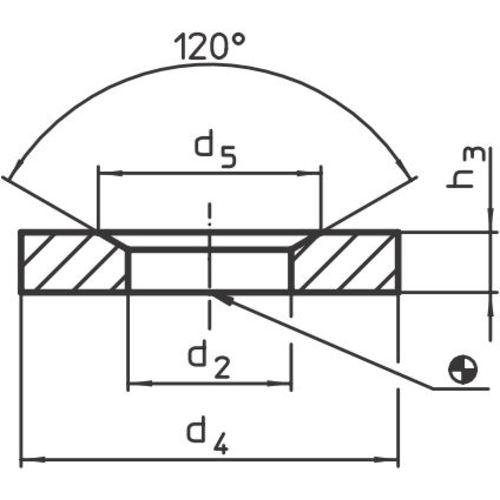

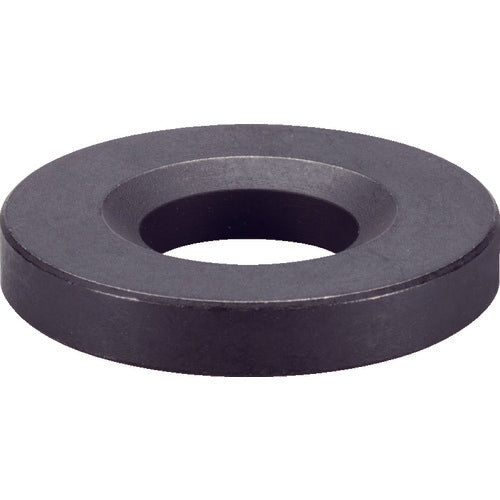

Catalogue number: 23050.0136 Features: ● Used in combination with a spherical washer when the bolt and seat are not perpendicular. ● Corrects the seat angle by approximately 3 degrees. Applications: ● For bolt fixing on inclined surfaces such as castings and straps. Specifications: ● Suitable bolt: M36 ● Outer diameter (mm): 68 ● Inner diameter (mm): 42 ● Height (mm): 15 ● Load capacity (static load) (max. kN): 394 ● Screw tightening torque (max. Nm): 2372 ● Shape D Material/Finish: ● Hardened steel (carburized and hardened) ● Finish: Phosphate coating treatment Caution: ● Be sure to use shape G for long holes.
