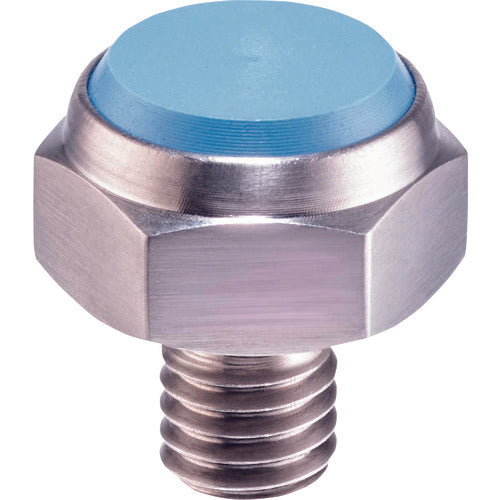

HALDER Base pin, plastic coated, M10, 22691.0031, 1 piece

Catalogue number: 22691.0031 Features: ●Ideal for preventing damage to finished surfaces. Applications: ●For fixing workpieces. Specifications: ●Width (mm): 21.9 ●Height (mm): 10 ●Thread size: M10 ●Diameter (mm): 14.5 ●Thread length (mm): 12 ●Top diameter (mm): 14.5 ●Pad diameter (mm): 14.5 ●Load capacity (kN): 15.5 ●Tightening torque when mounting (N・m): 32 ●The rest button with a resin receiving surface can be used as a support, stopper, and pad when protecting the workpiece. Material/Finish: ●Body: Stainless steel ●Insert: Plastic (PEEK)
