HALDER Pedestal part Thrust pad, plastic coated M12 22600.0012 1 piece

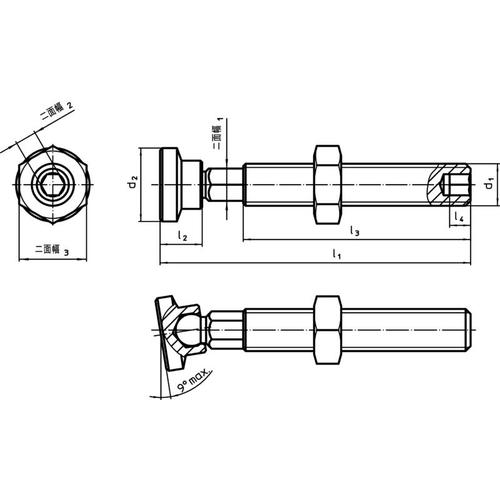

Catalogue number: 22600.0012 Features: ● The pad has a plastic coating that gently protects delicate surfaces. ● It can oscillate up to 9 degrees, making it suitable for surfaces that are not parallel. Applications: ● For receiving and fixing workpieces. ● For fixing workpieces and adjusting their height. Specifications: ● Thread diameter: M12 ● Upper tray diameter (mm): 16.8 ● Overall height (mm): 84.4 ● Length (mm): 84.4 ● Thread length (mm): 64.3 ● Thread dimensions: M12 ● Pad diameter (mm): 16.8 ● Hexagonal hole dimensions (mm): 6.0 ● Base part for a grub screw that can be screwed in. Materials/Finish: ● Bolt: Stainless steel ● Nut: Stainless steel ● Pad: Plastic (PEEK), Blue
