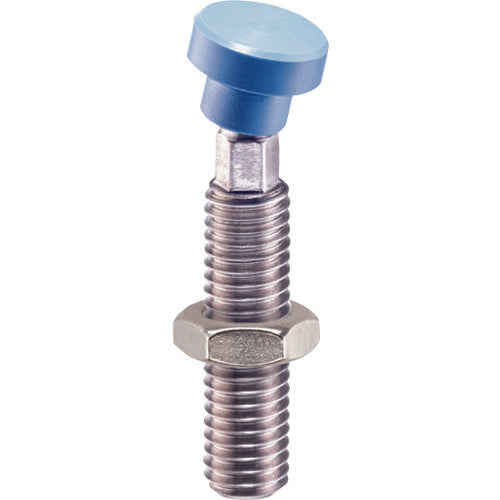

HALDER Pedestal part Thrust pad, plastic coated M8 22600.0008 1 piece

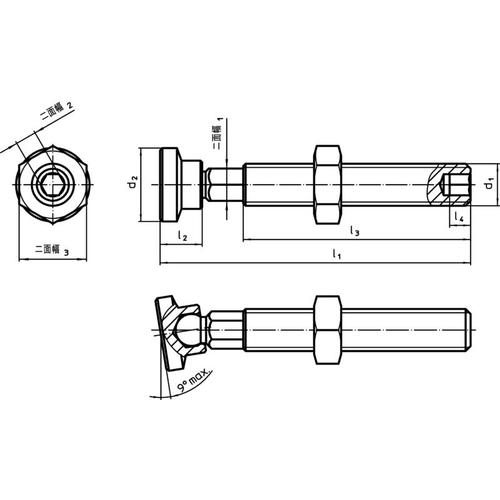

Catalogue number: 22600.0008 Features: ● The pad has a plastic coating that gently protects delicate surfaces. ● It can oscillate up to 9 degrees, making it suitable for surfaces that are not parallel. Applications: ● For receiving and fixing workpieces. ● For fixing workpieces and adjusting their height. Specifications: ● Screw diameter: M8 ● Upper tray diameter (mm): 12.5 ● Overall height (mm): 63.3 ● Length (mm): 63.3 ● Screw length (mm): 49.0 ● Screw dimensions: M8 ● Pad diameter (mm): 12.5 ● Hexagonal hole dimensions (mm): 4.0 ● Base part for a grub screw that can be screwed in. Materials/Finish: ● Bolt: Stainless steel ● Nut: Stainless steel ● Pad: Plastic (PEEK), Blue
