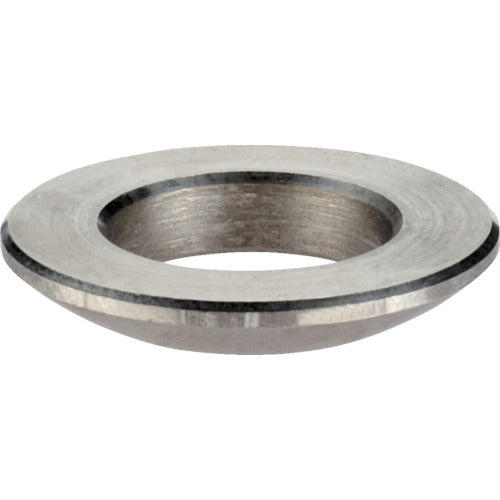

HALDER Spherical Washer Stainless Steel Fits Bolt M10 23050.0310 1 Piece

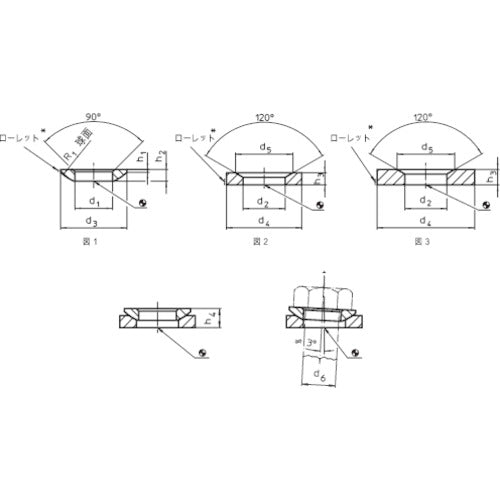

Catalogue number: 23050.0310 Features: ● Used in combination with a conical seat when the bolt and seat are not perpendicular. ● Corrects the seat angle by up to 3 degrees. Applications: ● For bolt fixing on inclined surfaces such as castings and straps. Specifications: ● Suitable bolt: M10 ● Outer diameter (mm): 21 ● Inner diameter (mm): 10.5 ● Height (mm): 4 ● h4: Height when combined (mm) Conical seat D type/Conical seat G type: 6.3/7.1 ● Suitable bolt nominal diameter: 10 ● Load capacity (static load) (max. kN): 16 ● Screw tightening torque (max. Nm): 32 ● Shape C ● Friction coefficient: 0.12 Material/Finish: ● Stainless steel 1.4305 (equivalent to SUS303)
