HALDER Spherical Washer Stainless Steel Fits Bolt M16 23050.0316 1 Piece

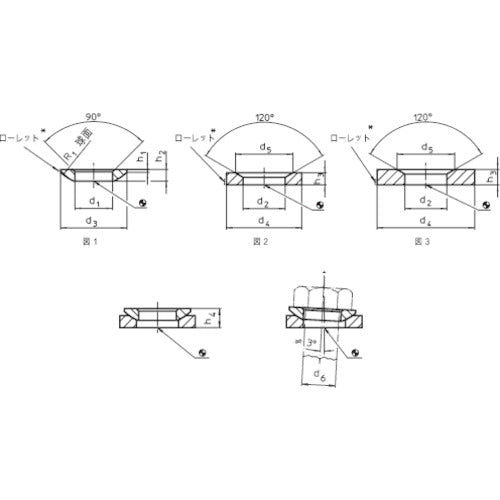

Catalogue number: 23050.0316 Features: ● Used in combination with a conical seat when the bolt and seat are not perpendicular. ● Corrects the seat angle by approximately 3 degrees. Applications: ● For bolt fixing on inclined surfaces such as castings and straps. Specifications: ● Suitable bolt: M16 ● Outer diameter (mm): 30 ● Inner diameter (mm): 17 ● Height (mm): 5.3 ● h4: Height when combined (mm) Conical seat D type/Conical seat G type: 9.3/10.1 ● Suitable bolt nominal diameter: 16 ● Load capacity (static load) (max. kN): 45 ● Screw tightening torque (max. Nm): 135 ● Shape C ● Friction coefficient: 0.12 Material/Finish: ● Stainless steel 1.4305 (equivalent to SUS303)
