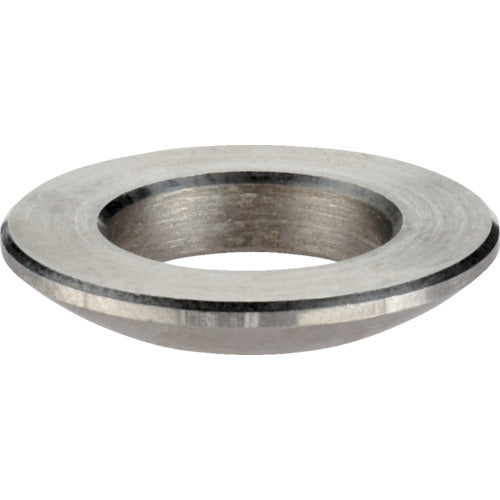

HALDER Spherical Washer Stainless Steel Fits Bolt M8 23050.0308 1 Piece

Catalogue number: 23050.0308 Features: ● Used in combination with a conical seat when the bolt and seat are not perpendicular. ● Corrects the seat angle by approximately 3 degrees. Applications: ● For bolt fixing on inclined surfaces such as castings and straps. Specifications: ● Suitable bolt: M8 ● Outer diameter (mm): 17 ● Inner diameter (mm): 8.4 ● Height (mm): 3.2 ● h4: Height when combined (mm) Conical seat D type / Conical seat G type: 5.3 / 6.8 ● Suitable bolt nominal diameter: 8 ● Load capacity (static load) (max. kN): 12 ● Screw tightening torque (max. Nm): 16 ● Shape C ● Friction coefficient: 0.12 Material / Finish: ● Stainless steel 1.4305 (equivalent to SUS303)
