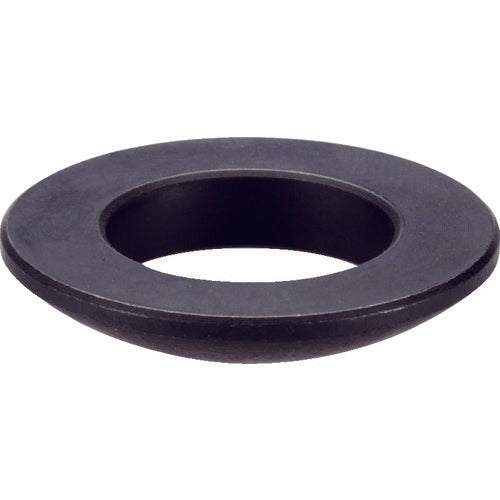

HALDER Spherical Washer Hardened Steel Suitable for Bolt M6 23050.0006 1 piece

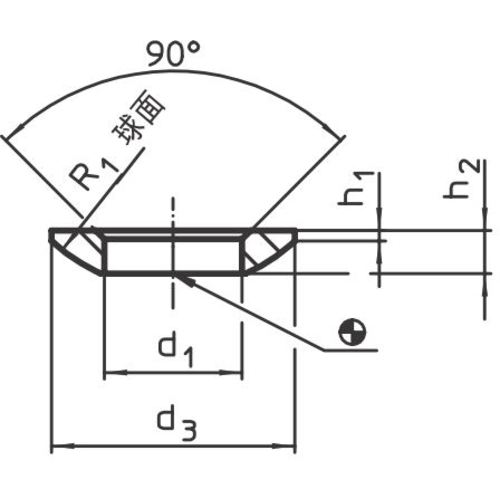

Catalogue number: 23050.0006 Features: ● Used in combination with a conical seat when the bolt and seat are not perpendicular. ● Corrects the seat angle by approximately 3 degrees. Applications: ● For bolt fixing on inclined surfaces such as castings and straps. Specifications: ● Suitable bolt: M6 ● Outer diameter (mm): 12 ● Inner diameter (mm): 6.4 ● Height (mm): 2.3 ● h4: Height when combined (mm) Conical seat D type/Conical seat G type: 4.2/5.4 ● Suitable bolt nominal diameter: 6 ● Screw tightening torque (max. Nm): 10 ● Load capacity (static load) (max. kN): 9 ● Shape C ● Friction coefficient: 0.14 Material/Finish: ● Hardened steel (carburized and hardened) ● Finish: Phosphate coating treatment
