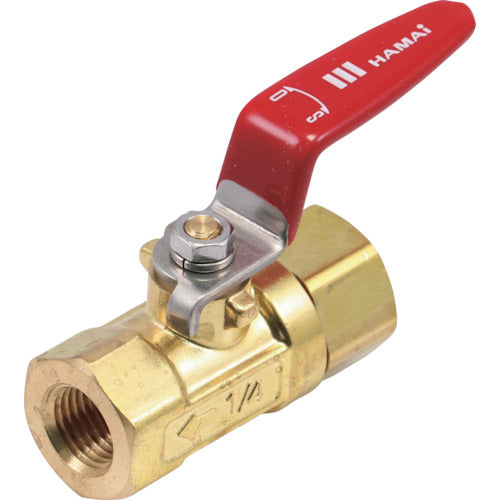

HAMAI Standard Bore Brass Ball Valve RBS-43-08RC 1 pc

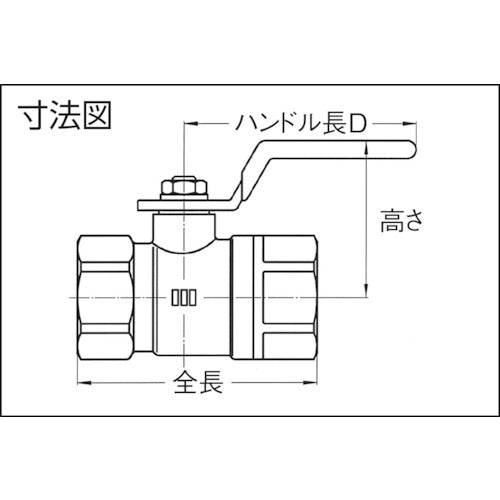

Catalog number: RBS-43-08RC Features: ●Standard bore brass ball valve that can handle larger flow rates than reduced bore. ●In addition to minimizing fluid resistance and pressure loss, one of the features is that it has high pressure resistance among brass valves. Applications: ●For water, oil, and gas. Specifications: ●Nominal diameter A: 8 ●Nominal diameter B: 1/4 ●Total length (mm): 50 ●Height (mm): 34 ●Handle length D (mm): 53 ●Maximum allowable pressure (MPa): 4.12 ●Operating temperature range (℃): -10 to 120 (non-freezing) ●Compatible fluids: water, oil, gas, etc. ●Nominal diameter (mm): 13.8 ●Face to face (mm): 50 ●Inner diameter (mm): 7.5 ●Connection: RC x RC Material/Finish: ●Brass (C3771)
