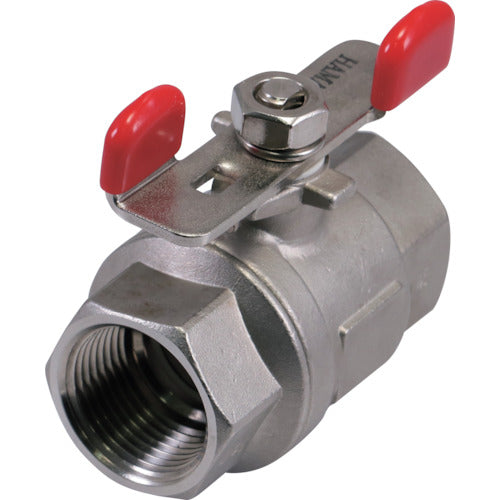

HAMAI Stainless Steel Full Bore Ball Valve (Knob) FST-02-20RC 1 pc

Catalog number: FST-02-20RC Features: ●A stainless steel economy model that ensures a large flow rate equivalent to a full bore. ●Uses stainless steel (SCS14A) with excellent corrosion resistance. ●Lever handle provides good operability. Applications: ●For water, oil, and gas. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Total length (mm): 70.5 ●Height (mm): 49 ●Handle length D (mm): 60 ●Maximum allowable pressure (MPa): 3.92 ●Operating temperature range (℃): -10 to 150 ●Compatible fluids: water, oil, gas, etc. ●Nominal diameter (mm): 27.2 ●Face-to-face distance (mm): 70.5 ●Inner diameter (mm): 20 ●Connection: Rc x Rc ●Country of manufacture: Japan ●Full bore type Material/Finish: ●Stainless steel (SCS14A)
