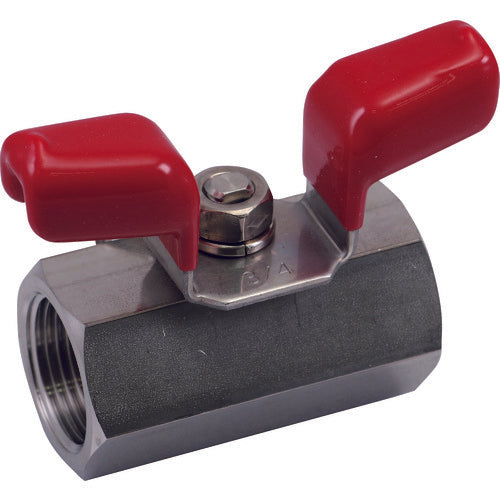

HAMAI Stainless Steel Ball Valve (Wing Handle) BSS-126-20RC 1 pc

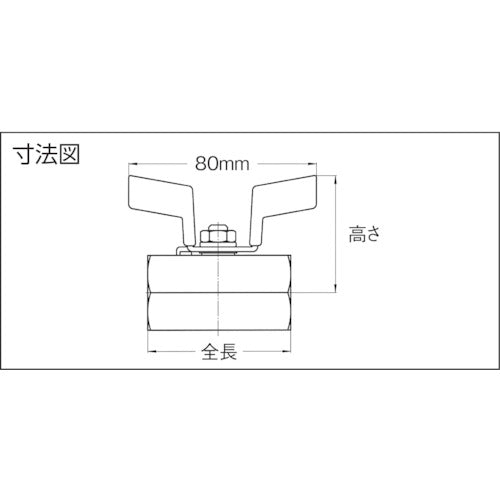

Catalog number: BSS-126-20RC Features: ●Complies with RoHS 10 substances. ●SUS316 reduced bore type with excellent corrosion resistance and heat resistance. ●Compact butterfly handle/wing handle is used, making it ideal for piping in narrow spaces. Applications: ●For water, oil, and gas. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Total length (mm): 61 ●Height (mm): 50 ●Handle length D (mm): 80 ●Maximum allowable pressure (MPa): 3.92 ●Operating temperature range (℃): -20 to 180 (non-freezing) ●Compatible fluids: water, oil, gas, etc. ●Nominal diameter (mm): 27.2 ●Face-to-face distance (mm): 61 ●Inner diameter (mm): 12.5 ●Connection: Rc x Rc Material/Finish: ●Stainless steel (SUS316)
