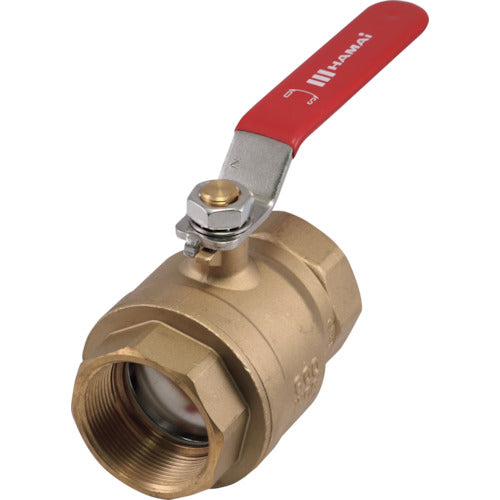

HAMAI Full bore equivalent lever handle type brass ball valve FBT-101-10RC 1 piece

Catalog number: FBT-101-10RC Features: ●An economy model that ensures a large flow rate equivalent to a full bore while also being economical. ●A model that pursues the best balance between functionality and economy through simplified design and manufacturing. ●Uses a lever handle type that is easy to operate. ●Full bore equivalent specifications reduce fluid resistance when fully open and suppress pressure loss. Applications: ●For water, oil, and gas. Specifications: ●Nominal diameter A: 10 ●Nominal diameter B: 3/8 ●Total length (mm): 50 ●Height (mm): 41 ●Handle length D (mm): 85 ●Maximum allowable pressure (MPa): 3.92 ●Operating temperature range (℃): -10 to 120 (non-freezing) ●Compatible fluids: water, oil, gas, etc. ●Nominal diameter (mm): 17.3 ●Face to face (mm): 50 ●Inner diameter (mm): 9.6 ●Maximum pressure: 3.92MPa Material/Finish: ●Brass (C3771)
