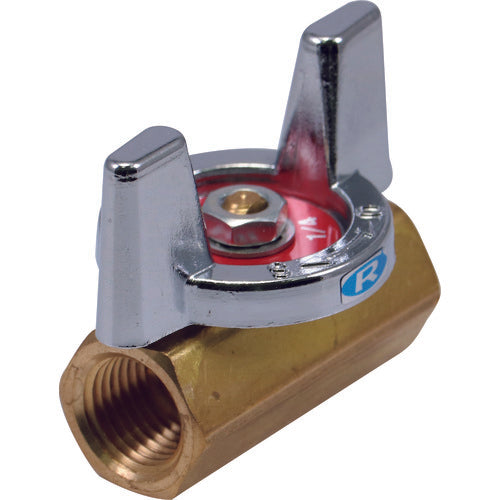

HAMAI RoHS 10 Substance Compliant Brass Ball Valve (Butterfly Handle) BBS-A06-08RC 1 pc

Catalog number: BBS-A06-08RC Features: ●Complies with the RoHS Directive (10 substances). ●A brass reduced bore type with a one-piece forged body that is highly tough and minimizes leakage. ●The butterfly handle/wing handle allows for piping in very narrow spaces and installation in small devices. Applications: ●For water, oil, and gas. Specifications: ●Nominal diameter A: 8 ●Nominal diameter B: 1/4 ●Total length (mm): 40 ●Height (mm): 30 ●Handle length D (mm): 46 ●Maximum allowable pressure (MPa): 1.96 ●Operating temperature range (℃): -10 to 120 (non-freezing) ●Compatible fluids: water, oil, gas, etc. ●Nominal diameter (mm): 13.8 ●Face to face (mm): 40 ●Inner diameter (mm): 5 ●Connection: RC x RC Material/Finish: ●Brass (C3771)
