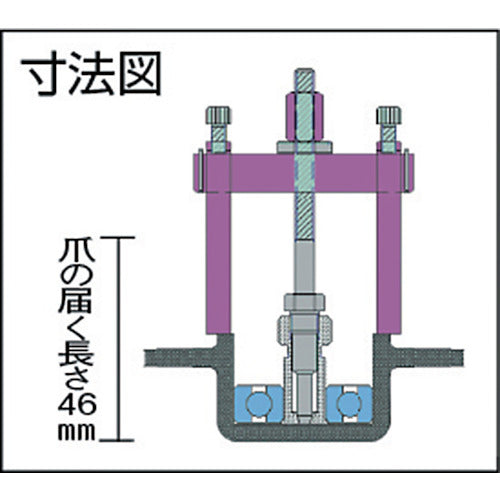

Catalog number: NHBP-10257 Features: ●Bearings can be removed from cases that do not have a through hole at the bottom, such as clutch pilots, hubs of two-wheeled vehicles, crankcases, agricultural machinery, and air tools. ●Even with cased bearings, the flange at the tip of the chuck can enter and remove them even if the bottom gap is narrow. ●Removal is possible by surface contact where the side of the chuck touches the inner diameter of the bearing. Uses: ●Special tool for removing cased bearings. Specifications: ●Center bolt diameter: M8 ●Width (mm): 90 ●Outer ring pull-out capacity (mm): φ63 ●Breaking load (t): 1.0 ●Applicable bearing inner diameter (mm): 10, 12, 15, 17 ●Length of jaw reach (mm): 46 ●Applicable bearing inner diameter: 10, 12, 15, 17mm Material/Finish: ●Steel
