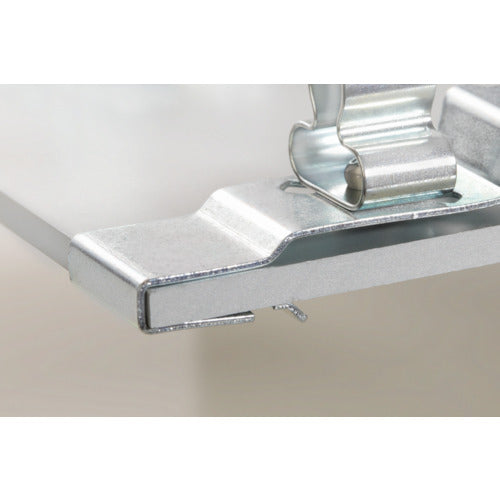

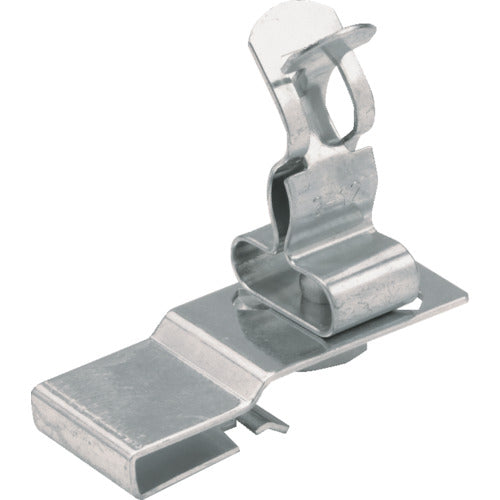

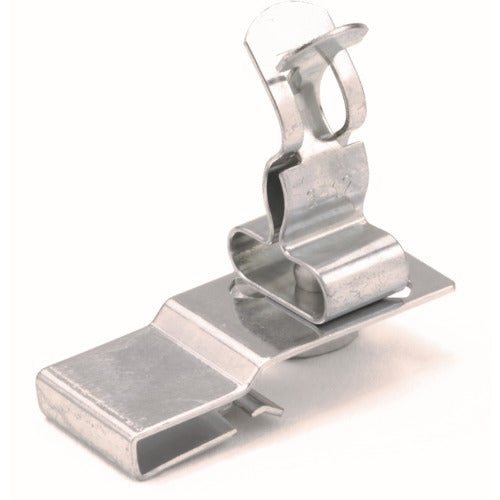

Catalog number: 1025-128 Features: ●Can be used as an EMC countermeasure. ●Can be attached like a clip to the edges of 10x1.5mm and 10x3mm bus bars and sheet metal without tools. ●Cables can be held by simply pushing the cable in. ●Excellent conductivity and a large grounding area of the clip reduce electromagnetic noise. Applications: ●For cable earthing. Specifications: ●Color: Silver ●Maximum bundling diameter (mm): 12 ●Minimum bundling diameter (mm): 3 ●Fixing method: Clip ●Pilot hole diameter (mm): 10 ●EMC countermeasure ●For 10x1.5mm and 10x3mm bus bars Material/Finish: ●Spring steel (zinc plated) Note: ●Strain relief is a function that uses a separate cable tie to fix the cable and reduce stress and damage to the sheath (coating).
