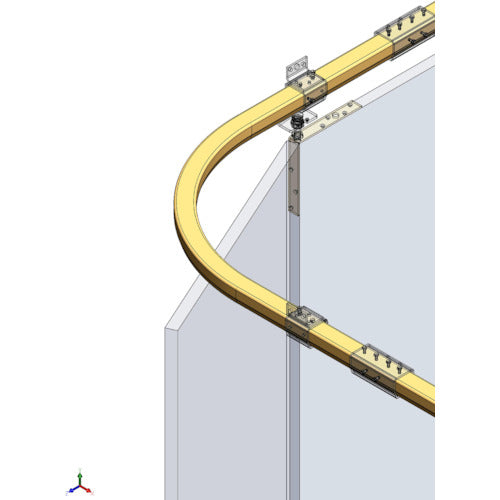

Catalog number: 25HE-CR Features: ● A curved rail made of high-quality steel with electrolytic plating. It boasts extremely high durability and does not peel off due to deterioration over time. ● A hanger rail made of thick steel but compact in size. ● The structure is designed to prevent dust from accumulating on the track of the hoist. Uses: ● For suspending and transporting hanger cars. Specifications: ● Load capacity (kg): When suspending two double wheels: Sliding door = 400-600, folding door = 400-600 ● Total length (mm): 2000 ● a (mm): 550 ± 20 ● R (mm): 580 ± 15 ● Compatible rail: No. 25 ● R: 90 ● Compliant with European standard EN1527 Material/Finish: ● Steel (electrolytic plating)
