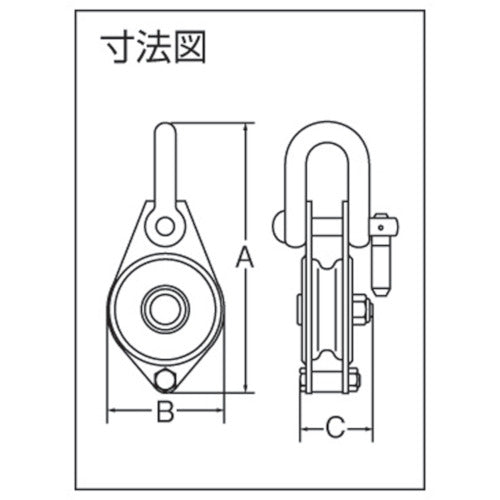

Catalogue number: SY-100 Features: ● Shackle head. ● Sheave has bearings. Applications: ● Pass a rope through it to lift or pull luggage. Specifications: ● Basic load capacity (t): 0.75 ● Maximum rope diameter (mm): 12 ● Number of wheels: 1 ● Wheel diameter (mm): 100 ● Dimension (mm) A: 240 ● Dimension (mm) B: 110 ● Dimension (mm) C: 50 ● Shackle type Material/Finish: ● Steel Note: ● The load capacity is the value for a movable pulley. If used as a fixed pulley, it will be half.
