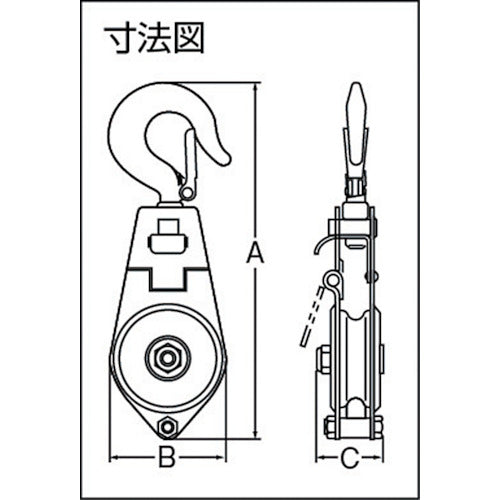

Catalogue number: SYH-75 Features: ●The head can be removed, so it can be attached even in the middle of the rope. ●The sheave has a bearing. Applications: ●Pass the rope through it to lift or pull luggage, etc. Specifications: ●Basic load capacity (t): 0.35 ●Maximum rope diameter (mm): 10 ●Wheel diameter (mm): 75 ●Dimension (mm) A: 240 ●Dimension (mm) B: 85 ●Dimension (mm) C: 40 ●Load capacity (t): 0.35 ●Hook type ●With latch Material/Finish: ●Steel Note: ●Load capacity is the value for a movable pulley. If used as a fixed pulley, it will be half.
